BSIDE A1X Digital Multimeter
Features

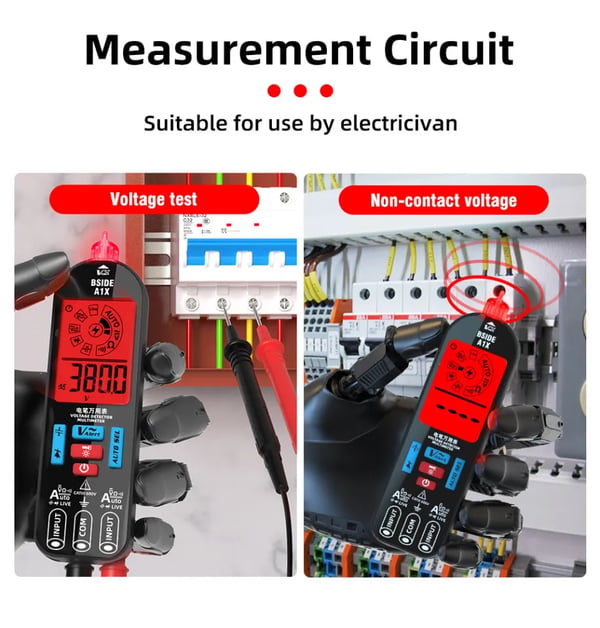

- [Professional Voltage Tester]: The rechargeable multimeter can also be used as a professional non-contact voltage tester. The sensitivity of the ac volt tester is adjustable.
- [High Efficiency]: Activating capacitance, diode, v-alert, or auto mode measurement under any function design makes testing more convenient, and greatly improves your efficiency.

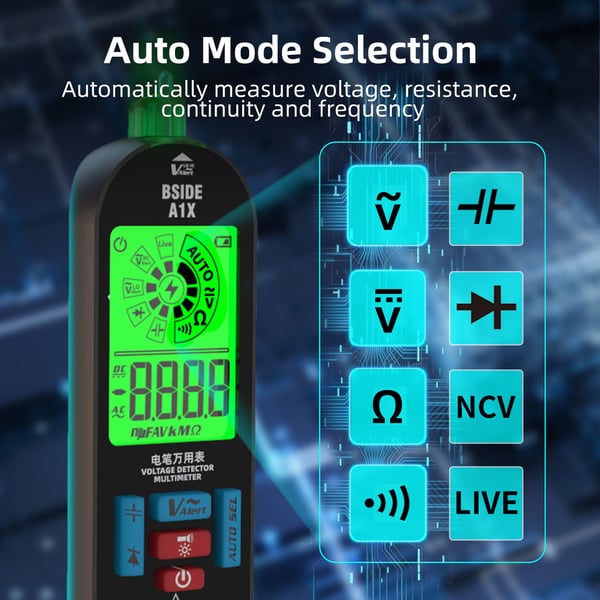

- [Smart Mode]: This smart multimeter tester can automatically measure AC and DC voltage, resistance, and continuity with the best resolution. All of these functions measurement can be done manually as well.
- [Red and Green Backlight]: The smart digital multimeter has a high-resolution LCD screen, with a red and green backlight, greatly enhancing the reading experience.

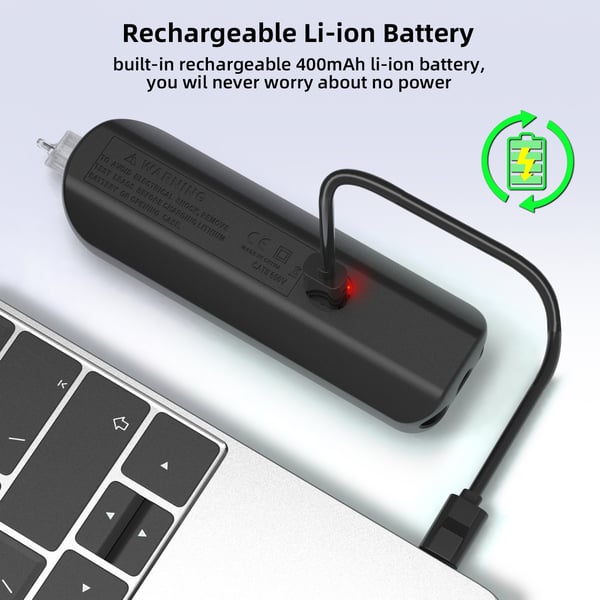

- [Rechargeable]: The intelligent multimeter comes with a rechargeable battery & charging cable, so you will never worry about power problems.

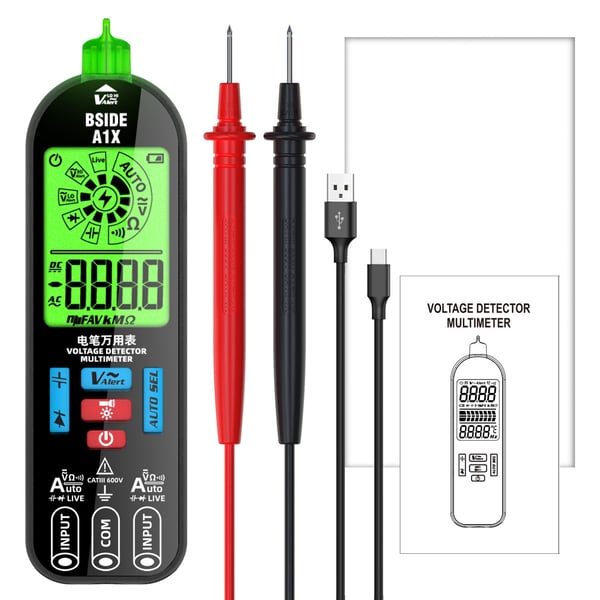

Package Includes:
1 x Smart Multimeter
1 x Test Leads
1 x Charging Cable
1 x Rechargeable Battery
1 x User Manual
Specifications:
MAX Display: 2000 counts
DC Voltage:
0V-1.999V 0.001V ±(0.8%+3); 2V-19.99V 0.01V ±(0.8%+3); 20V-199.9V 0.1V ±(0.8%+3); 200V-520V 1V ±(1%+5)

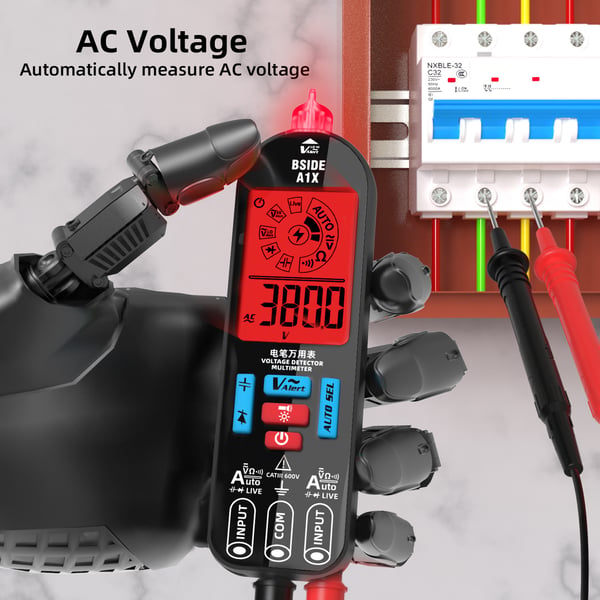

AC Voltage:
0.005V-1.999V 0.001V ±(0.8%+3); 2V-19.99V 0.01V ±(0.8%+3); 20V-199.9V 0.1V ±(0.8%+3); 200V-520V 1V ±(1%+5)
Resistance:
0-1999Ω 1Ω ±(1.2%+5); 2KΩ-19.99KΩ 0.01KΩ ±(1.2%+3); 20KΩ-199.9KΩ 0.1KΩ ±(1.2%+3);
200KΩ-1999KΩ 1KΩ ±(1.2%+3); 2MΩ-19.99MΩ 0.01MΩ ±(1.5%+5)
Capacitance:
1nF-19.99nF 0.01nF ±(3.5%+8); 10nF-199.9nF 0.1nF ±(3.5%+8); 200nF-1999nF 1nF ±(3.5%+8);
2μF-19.99μF 0.01μF ±(4.5%+10); 20μF-199.9μF 0.1μF ±(4.5%+10); 200μF-1999μF 1μF ±(4.5%+10)
V-Alert (non-contact voltage detection): High and low mode
Live Wire Check: Yes
Continuity: If the resistance is less than 50Ω, the beeper sounds
Diode: Measure diodes within 3V
Power: 3.7V (built-in, rechargeable)
Size: 146*44*25.2mm
